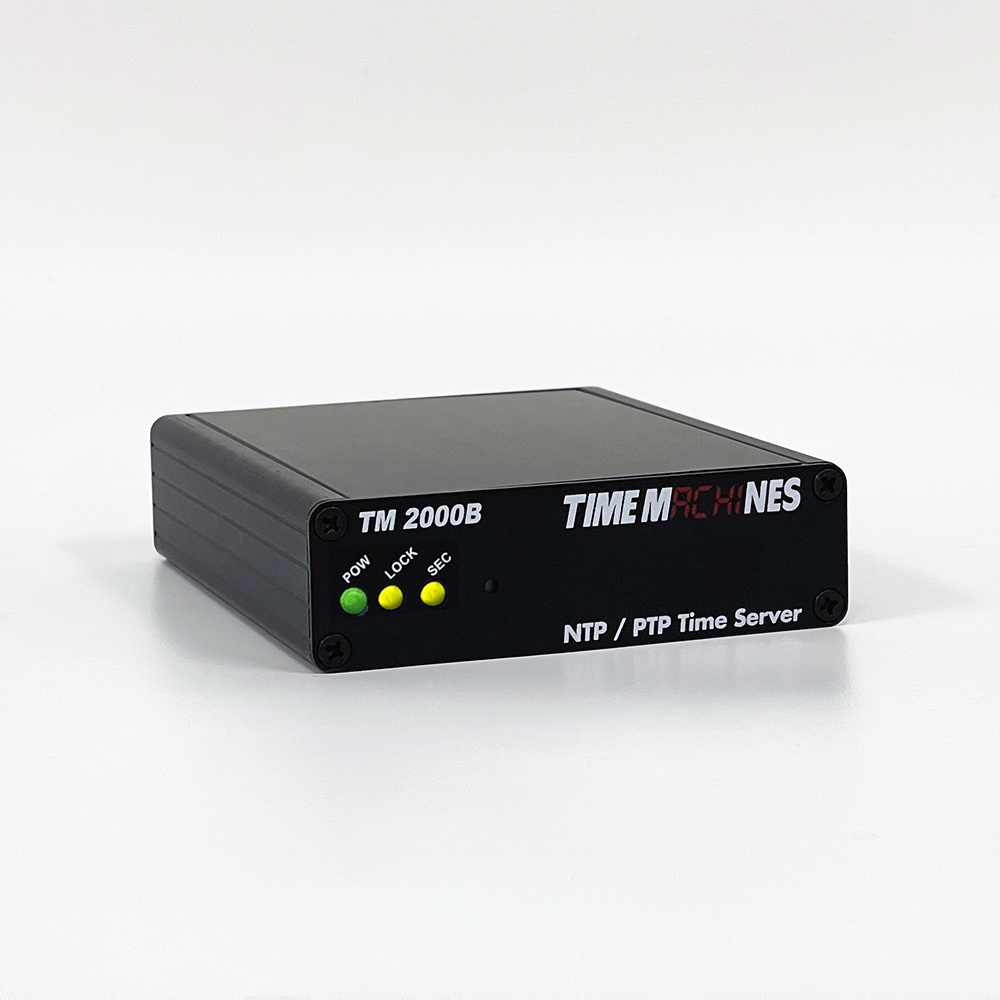

GPS NTP PTP Network Time Server (TM2000B)

$64.18 $94.99
Description The TM2000B (GPS NTP PTP Network Time Server) is the next generation of our TM2000 GPS NTP appliances at the same great price. The TM2000B provides a Stratum 1 time source on the local network with no need for an internet connection. SNMP V2/V3 is supported on the device, authenticated NTP, peer NTP lookup, IPv6, PTP without GPS, and manual time setting modes. The TM2000B uses an active GPS antenna to maintain the current time as broadcasted by United States-based GPS satellites worldwide. In addition, a high stability OCXO reference clock is included that allows this GPS NTP appliance to serve time if GPS lock is lost for periods of time. Additional processing on the TM2000B provides a greater accuracy to this holdover time from our previous model. The NTP PTP Network Time Server unit is small and can be placed anywhere within the network layout. Included with each TM2000B purchase: 12V Power Supply •  GPS Patch Antenna •  Quick Setup Guide •  Rubber Grips Additional TM2000B Documentation and Information: TM2000B/2500B Manual TM2000B Brochure Outdoor Antenna Products Configuration Guide Network Time Server Comparison FeaturesTM1000ATM2000BTM2500CTM3000A Source of Time ServedUS GPS SatellitesUS GPS SatellitesUS GPS SatellitesGNSS - US, RU, CN, EU Stratum LevelStratum 1 (GPS)Stratum 1 (GPS)Stratum 1 (GPS)Stratum 1 (GNSS) NTP requests per second350>750</td><td class="column-4">>750</td><td class="column-5">>1900</td> </tr> <tr class="row-6"> <td class="column-1">NTP Authentication</td><td class="column-2">NO</td><td class="column-3">MD5/SHA1</td><td class="column-4">MD5/SHA1</td><td class="column-5">MD5, SHA1-512, AES128/256</td> </tr> <tr class="row-7"> <td class="column-1">NTP Network Time Security</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-8"> <td class="column-1">Manual Time Setting</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-9"> <td class="column-1">Peer NTP Updates</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-10"> <td class="column-1">SNMP Management</td><td class="column-2">NO</td><td class="column-3">V2/V3</td><td class="column-4">V2/V3</td><td class="column-5">V2/V3</td> </tr> <tr class="row-11"> <td class="column-1">Web-Based Setup</td><td class="column-2">YES</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-12"> <td class="column-1">Network Interface Speed</td><td class="column-2">10/100</td><td class="column-3">10/100 HW Time Stamp</td><td class="column-4">10/100 HW Time Stamp</td><td class="column-5">10/100/1000 Dual HW Time Stamp</td> </tr> <tr class="row-13"> <td class="column-1">Time Protocols Supported</td><td class="column-2">NTP (v1-v4)</td><td class="column-3">NTP (v1-v4)/PTP v2</td><td class="column-4">NTP (v1-v4)/PTP v2</td><td class="column-5">NTP (Chrony), PTP v2</td> </tr> <tr class="row-14"> <td class="column-1">Internal Oscillator/Holdover Time Source</td><td class="column-2">NO</td><td class="column-3">OCXO 20ppb</td><td class="column-4">OCXO 20ppb</td><td class="column-5">OCXO 20ppb</td> </tr> <tr class="row-15"> <td class="column-1">Improved Holdover Accuracy</td><td class="column-2">N/A</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-16"> <td class="column-1">Precision Time Protocol, <br /> Unicast and Multicast</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-17"> <td class="column-1">Linux Embedded OS</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-18"> <td class="column-1">GPS Lock Requirement</td><td class="column-2">2D</td><td class="column-3">3D (optional 2D)</td><td class="column-4">3D (optional 2D)</td><td class="column-5">2D/3D</td> </tr> <tr class="row-19"> <td class="column-1">NMEA Output</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">NO</td> </tr> <tr class="row-20"> <td class="column-1">1 PPS OUTPUT</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-21"> <td class="column-1">10 MHz OUTPUT</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-22"> <td class="column-1">Synchronized 10MHz Signal</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-23"> <td class="column-1">Power</td><td class="column-2">2W</td><td class="column-3">5W Startup / 2.5W After</td><td class="column-4">6W startup / 3W After</td><td class="column-5">9W Startup / 6W After</td> </tr> <tr class="row-24"> <td class="column-1">LCD Display</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-25"> <td class="column-1">Encryption</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">https / SNMPv3 / NTS</td> </tr> <tr class="row-26"> <td class="column-1">48 Volt Compatible</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-27"> <td class="column-1">PTP Accuracy</td><td class="column-2">N/A</td><td class="column-3"><1uS</td><td class="column-4"><1uS</td><td class="column-5"><500nS750>750</td><td class="column-5">>1900</td> </tr> <tr class="row-6"> <td class="column-1">NTP Authentication</td><td class="column-2">NO</td><td class="column-3">MD5/SHA1</td><td class="column-4">MD5/SHA1</td><td class="column-5">MD5, SHA1-512, AES128/256</td> </tr> <tr class="row-7"> <td class="column-1">NTP Network Time Security</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-8"> <td class="column-1">Manual Time Setting</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-9"> <td class="column-1">Peer NTP Updates</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-10"> <td class="column-1">SNMP Management</td><td class="column-2">NO</td><td class="column-3">V2/V3</td><td class="column-4">V2/V3</td><td class="column-5">V2/V3</td> </tr> <tr class="row-11"> <td class="column-1">Web-Based Setup</td><td class="column-2">YES</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-12"> <td class="column-1">Network Interface Speed</td><td class="column-2">10/100</td><td class="column-3">10/100 HW Time Stamp</td><td class="column-4">10/100 HW Time Stamp</td><td class="column-5">10/100/1000 Dual HW Time Stamp</td> </tr> <tr class="row-13"> <td class="column-1">Time Protocols Supported</td><td class="column-2">NTP (v1-v4)</td><td class="column-3">NTP (v1-v4)/PTP v2</td><td class="column-4">NTP (v1-v4)/PTP v2</td><td class="column-5">NTP (Chrony), PTP v2</td> </tr> <tr class="row-14"> <td class="column-1">Internal Oscillator/Holdover Time Source</td><td class="column-2">NO</td><td class="column-3">OCXO 20ppb</td><td class="column-4">OCXO 20ppb</td><td class="column-5">OCXO 20ppb</td> </tr> <tr class="row-15"> <td class="column-1">Improved Holdover Accuracy</td><td class="column-2">N/A</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-16"> <td class="column-1">Precision Time Protocol, <br /> Unicast and Multicast</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-17"> <td class="column-1">Linux Embedded OS</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-18"> <td class="column-1">GPS Lock Requirement</td><td class="column-2">2D</td><td class="column-3">3D (optional 2D)</td><td class="column-4">3D (optional 2D)</td><td class="column-5">2D/3D</td> </tr> <tr class="row-19"> <td class="column-1">NMEA Output</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">NO</td> </tr> <tr class="row-20"> <td class="column-1">1 PPS OUTPUT</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-21"> <td class="column-1">10 MHz OUTPUT</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-22"> <td class="column-1">Synchronized 10MHz Signal</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-23"> <td class="column-1">Power</td><td class="column-2">2W</td><td class="column-3">5W Startup / 2.5W After</td><td class="column-4">6W startup / 3W After</td><td class="column-5">9W Startup / 6W After</td> </tr> <tr class="row-24"> <td class="column-1">LCD Display</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-25"> <td class="column-1">Encryption</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">https / SNMPv3 / NTS</td> </tr> <tr class="row-26"> <td class="column-1">48 Volt Compatible</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-27"> <td class="column-1">PTP Accuracy</td><td class="column-2">N/A</td><td class="column-3"><1uS</td><td class="column-4"><1uS750>1900</td> </tr> <tr class="row-6"> <td class="column-1">NTP Authentication</td><td class="column-2">NO</td><td class="column-3">MD5/SHA1</td><td class="column-4">MD5/SHA1</td><td class="column-5">MD5, SHA1-512, AES128/256</td> </tr> <tr class="row-7"> <td class="column-1">NTP Network Time Security</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-8"> <td class="column-1">Manual Time Setting</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-9"> <td class="column-1">Peer NTP Updates</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-10"> <td class="column-1">SNMP Management</td><td class="column-2">NO</td><td class="column-3">V2/V3</td><td class="column-4">V2/V3</td><td class="column-5">V2/V3</td> </tr> <tr class="row-11"> <td class="column-1">Web-Based Setup</td><td class="column-2">YES</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-12"> <td class="column-1">Network Interface Speed</td><td class="column-2">10/100</td><td class="column-3">10/100 HW Time Stamp</td><td class="column-4">10/100 HW Time Stamp</td><td class="column-5">10/100/1000 Dual HW Time Stamp</td> </tr> <tr class="row-13"> <td class="column-1">Time Protocols Supported</td><td class="column-2">NTP (v1-v4)</td><td class="column-3">NTP (v1-v4)/PTP v2</td><td class="column-4">NTP (v1-v4)/PTP v2</td><td class="column-5">NTP (Chrony), PTP v2</td> </tr> <tr class="row-14"> <td class="column-1">Internal Oscillator/Holdover Time Source</td><td class="column-2">NO</td><td class="column-3">OCXO 20ppb</td><td class="column-4">OCXO 20ppb</td><td class="column-5">OCXO 20ppb</td> </tr> <tr class="row-15"> <td class="column-1">Improved Holdover Accuracy</td><td class="column-2">N/A</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-16"> <td class="column-1">Precision Time Protocol, <br /> Unicast and Multicast</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-17"> <td class="column-1">Linux Embedded OS</td><td class="column-2">NO</td><td class="column-3">YES</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-18"> <td class="column-1">GPS Lock Requirement</td><td class="column-2">2D</td><td class="column-3">3D (optional 2D)</td><td class="column-4">3D (optional 2D)</td><td class="column-5">2D/3D</td> </tr> <tr class="row-19"> <td class="column-1">NMEA Output</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">NO</td> </tr> <tr class="row-20"> <td class="column-1">1 PPS OUTPUT</td><td class="column-2">YES</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-21"> <td class="column-1">10 MHz OUTPUT</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-22"> <td class="column-1">Synchronized 10MHz Signal</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">YES</td><td class="column-5">YES</td> </tr> <tr class="row-23"> <td class="column-1">Power</td><td class="column-2">2W</td><td class="column-3">5W Startup / 2.5W After</td><td class="column-4">6W startup / 3W After</td><td class="column-5">9W Startup / 6W After</td> </tr> <tr class="row-24"> <td class="column-1">LCD Display</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-25"> <td class="column-1">Encryption</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">https / SNMPv3 / NTS</td> </tr> <tr class="row-26"> <td class="column-1">48 Volt Compatible</td><td class="column-2">NO</td><td class="column-3">NO</td><td class="column-4">NO</td><td class="column-5">YES</td> </tr> <tr class="row-27"> <td class="column-1">PTP Accuracy</td><td class="column-2">N/A</td><td class="column-3"><1uS1900 NTP AuthenticationNOMD5/SHA1MD5/SHA1MD5, SHA1-512, AES128/256 NTP Network Time SecurityNONONOYES Manual Time SettingNOYESYESYES Peer NTP UpdatesNOYESYESYES SNMP ManagementNOV2/V3V2/V3V2/V3 Web-Based SetupYESYESYESYES Network Interface Speed10/10010/100 HW Time Stamp10/100 HW Time Stamp10/100/1000 Dual HW Time Stamp Time Protocols SupportedNTP (v1-v4)NTP (v1-v4)/PTP v2NTP (v1-v4)/PTP v2NTP (Chrony), PTP v2 Internal Oscillator/Holdover Time SourceNOOCXO 20ppbOCXO 20ppbOCXO 20ppb Improved Holdover AccuracyN/AYESYESYES Precision Time Protocol, Unicast and MulticastNOYESYESYES Linux Embedded OSNOYESYESYES GPS Lock Requirement2D3D (optional 2D)3D (optional 2D)2D/3D NMEA OutputYESNONONO 1 PPS OUTPUTYESNOYESYES 10 MHz OUTPUTNONOYESYES Synchronized 10MHz SignalNONOYESYES Power2W5W Startup / 2.5W After6W startup / 3W After9W Startup / 6W After LCD DisplayNONONOYES EncryptionNONONOhttps / SNMPv3 / NTS 48 Volt CompatibleNONONOYES PTP AccuracyN/A Improved PTP JitterN/A /- 400nS /- 400nS /- 200nS GNSS SupportNONONOYES - GPS, GLONASS, Galileo, BeiDou, Selectable TimeMachines® is your reliable source for Synchronized Network Clock Systems using our GPS Network Time Servers and NTP PoE and WiFi Clock Displays. We also offer a variety of GPS Accessories, Clock Display Accessories, T-Track Ceiling Mount Kit, and our network device management software TM-Manager. Our network clock displays can also be used as Sports & Fitness Clocks. TimeMachines® products are professionally designed and manufactured in the USA. TimeMachines® offers a variety of professional time synchronization products to meet all of your network timing needs! At TimeMachines®, our focus is on quality, service, integrity, and price, while meeting the needs of our diverse and rapidly growing customer base. Our products are ideal for libraries, gyms, schools, broadcast studios, manufacturing facilities, healthcare facilities, police and public safety offices, government and military agencies, and any corporate office. Take the time to find your timing solution today at TimeMachines®! Learn more about our extended warranty options for our gps time servers.
