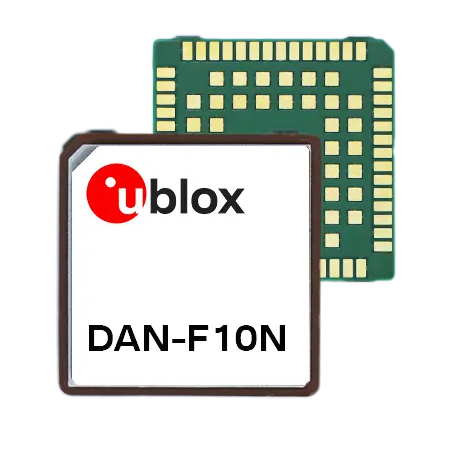

Description Compact L1/L5 dual-band smart antenna module for easy and reliable integration Easy to design-in with no RF expertise required Best in class dual-band antenna module in compact 20×20 mm size Consistently strong performance regardless of installation Integrated SAW-LNA-SAW for exceptional out-of-band jamming immunity Surface-mount device, enabling automated manufacturing Supports optional external active antenna Product Description DAN-F10N is a dual-band patch antenna module based on the u-blox F10 GNSS platform, which uses the L1/L5 GNSS bands to provide robust meter-level positioning accuracy in challenging environments. Using u-blox F10 proprietary dual-band multipath mitigation technology, the DAN-F10N module utilises the best signals from the L1/L5 bands to achieve better accuracy in urban environments. The compact 20 x 20 x 8 mm Right Hand Circular Polarized (RHCP) patch antenna provides the best compromise between size and performance of a L1/L5 dual-band antenna. The wide beamwidth of patch antenna increases flexibility in equipment installation. The DAN-F10N module’s robust SAW-LNA-SAW RF architecture and the additional notch filter (LTE B13) in L1 RF path ensure the best possible out-of-band interference mitigation. It is well suited for designs with a nearby cellular modem. The future-proof DAN-F10N includes internal flash to enable firmware upgradability. It also supports antenna switch function and can optionally be connected to an external dual-band GNSS antenna. The DAN-F10N is designed as a surface mount device, allowing for automated manufacturing. Incorporating the DAN-F10N dual-band antenna module into customer designs is easy and straightforward thanks to the integrated antenna, robust RF design, simple interface and sophisticated interference suppression that ensures maximum performance even in GNSS-hostile environments. DAN-F10N provides customers with a turnkey solution for rapid time-to-market, while minimising design and manufacturing costs. Further Information: Product variants DAN-F10N-00B GNSS features GNSS BeiDou, Galileo, GPS / QZSS, NavIC Oscillators TCXO Interfaces UART ✓ Electrical data Maximum supply [V] 3.6 Minimum supply [V] 2.7 Environmental data, quality & reliability Maximum temperature [°C] 85 Minimum temperature [°C] -40 Features Additional LNA ✓ Additional SAW ✓ Firmware upgradable ✓ RTC crystal ✓ Time pulse output ✓ General features Antennas Internal antenna Dimensions Dimensions [mm] 20.0 x 20.0 x 11.6 Services AssistNow ✓ Product Summary Data Sheet Web Link
