Wireless single channel 45w constant current dimming module

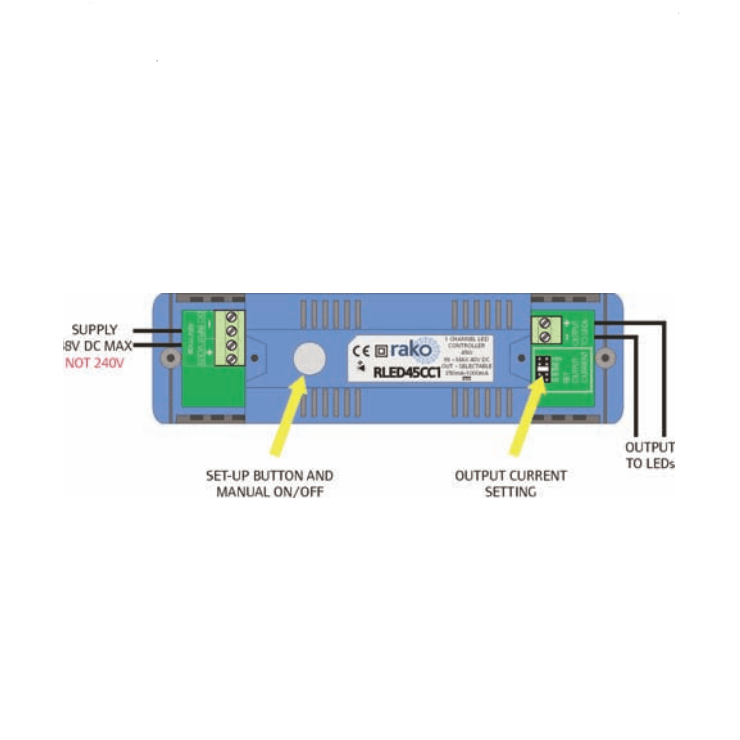

DescriptionWireless single channel 45w constant current dimming module. Up to 13 LEDs can be connected in series to a maximum of 45w. Selectable outputs of 350, 500, 600, 700 and 1000mA with a forward voltage range of 3-45V DC. Requires a suitable external power supply such as the Rako RAPSU48An in-line RF 45w constant current dimming LED driver.A 45W constant current LED dimmer with in-built RF receiver and Rako processor for constant current LED fittings. Selectable outputs of 350, 500, 600, 700 and 1000mA with a forward voltage range of 3-45V DC. The RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage, Rako recommends the RAPSU48.The module is connected in-line before the first fitting and can control up to 13 LEDs in series (note: some fittings may use multiple LEDs, if in doubt refer to Rako’s technical department) with a maximum wattage of 45W.Controlled from any Rako Rakom device, e.g. RCM wall plates or Bridge interface units. More info:RLED45CC1 data sheetRLED45CC1 instruction manual
