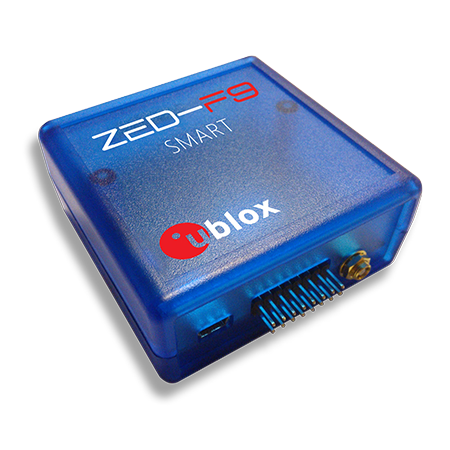

Description Product description The ZED-F9 SMART evaluation board allows efficient evaluation of the u-blox F9 high precision positioning module. The ZED-F9 module provides multi-band GNSS positioning and comes with built-in RTK technology providing centimetre level accuracy to users. The built-in USB interface provides both power supply and high-speed data transfer and eliminates the need for an external power supply. The ZED-F9 Smart evaluation board can be used with a PDA or a notebook PC, making them the perfect companion through all stages of design-in. The ZED-F9 SMART evaluation board can be connected to an external Radio/Wi-Fi module to provide wireless connectivity capabilities for common use cases. Features Mini-USB for an easy connection to a PC 20-pin connector to provide power (5 V-12 V DC), GPIO, 3.3V TTL, I2C & SPI interface Three LED’s to indicate GNSS operation SMA Connector for external active antenna, u-blox ANN-MB is the recommended antenna Protocols: NMEA, UBX, RTCM Highlights Powered by u-blox F9 high precision GNSS module Extensive visualisation & evaluation features Supports NTRIP server/client RTCM correction stream & AssistNow Online Services All ports accessible outside USB (v2.0 compatible) available for power supply and Data Transfer Easy to use Product variants ZED-F9P SMART ZED-F9H SMART ZED-F9T SMART ZED-F9K SMART ZED-F9R SMART System Requirements PC with USB Interface Operating System: Windows 10 / Windows 8 (Intel Version Platform) / Windows 7 USB Drivers are provided with the ZED-F9 SMART Board u-center GPS/GNSS evaluation software ZED-F9 Installer includes u-center, which is an interactive tool for configuration, testing, visualization and data analysis of positioning chips and modules. u-center provides useful assistance during all phases of a system integration project. Product Summary
