Universal RAK8 control card dimmer for 0-10v, DSI & DLI broadcast lighting loads

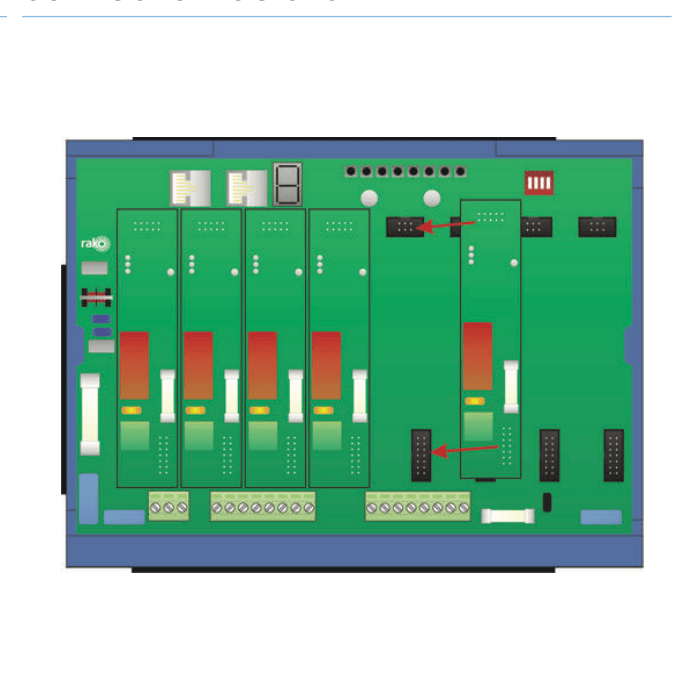

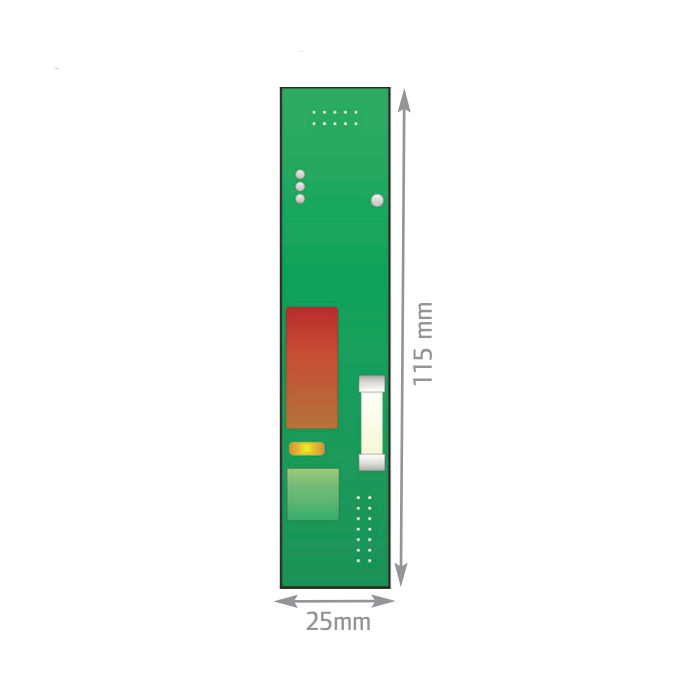

DescriptionWDA-600 Universal RAK8 control card dimmer for 0-10v, DSI & DLI broadcast lighting loadsA 600W insert card for use with RAK8-MB that is suitable for controlling 0-10V, DSI and DALI dimmable ballasts.The WDA-600 is plugged directly into the RAK8-MB board and the control signal output type (0-10V/DSI/DLI – Digital Lighting Interface) is selectable via the Rasoft Pro software. The WDA-600 can be used in combination with any of the other insert cards compatible with the RAK8-MB allowing for greater flexibility.As with all RAK8 pluggable modules no memory is stored on the WDA-600, all programming is stored on the motherboard meaning that the WDA-600 can be swapped with any other card without the need to be reprogrammed.Programmed using RASOFT Pro software, the unit can be used seamlessly with other Rako modules such as RML and RMT in-line dimmers and controlled from wired or wireless Rako keypads, remotes, tablets and smartphone apps. More info:WDA-600 data sheet
