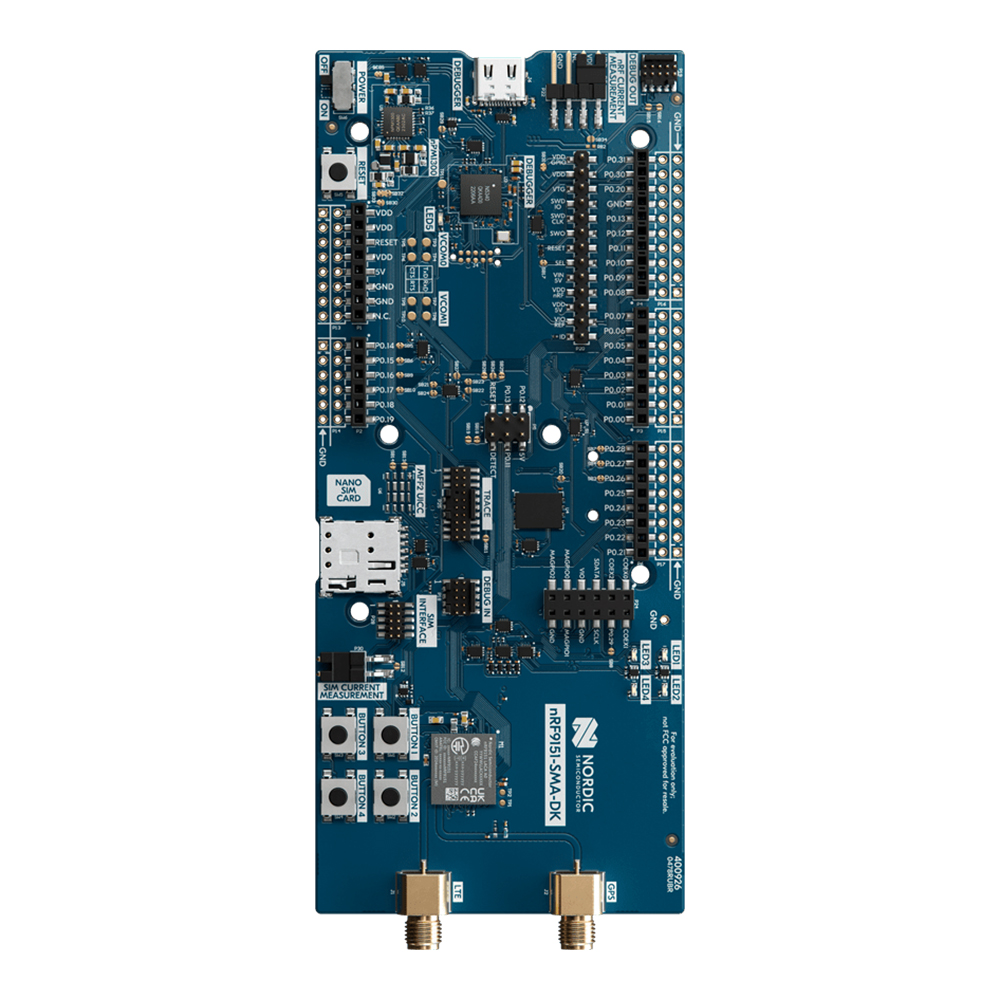

Description The nRF9151 SMA DK is a single-board development kit for the nRF9151 SiP, designed specifically for developers who require maximum performance and flexibility. It replaces internal antennas with SMA connectors for LTE-M/NB-IoT/NTN/DECT NR and GNSS, enabling direct connection to lab equipment or high-performance external antennas. This makes it the ideal platform for precise RF characterization, power measurements, and demanding field testing of applications using LTE-M, NB-IoT, NB-NTN, DECT NR , and GNSS. Key Features: Maximum RF Flexibility: Dedicated SMA connectors for LTE/NTN/NR and GNSS enable conducted measurements with lab equipment or connection of external antennas for optimized field test performance. (Antennas included with the kit for NTN/LTE-M/NB-IoT and GNSS) Comprehensive Connectivity: Powered by the nRF9151 SiP, the kit supports NTN, LTE-M, NB-IoT, DECT NR , and GNSS. It is the recommended kit for developing and evaluating direct-to-satellite solutions. Flexible SIM Technology: Features both a nano/4FF SIM card slot and an MFF2 SIM footprint, providing support for traditional plug-in SIMs as well as soldered eSIMs or software iSIMs. (SIMs supporting terrestrial and NTN is included with the kit) Extensive Prototyping Options: Full access to all GPIOs and interfaces is available via connectors. Arduino Uno Rev3 compatibility enables easy integration with a wide range of third-party shields, including the nRF7002 EK for adding Wi-Fi locationing capabilities. On-Board Debugging: An integrated SEGGER J-Link debugger allows for programming and debugging the onboard nRF9151 SiP and can also be used to program and debug external targets. User Interface: Includes four user-programmable LEDs and four buttons for direct user interaction and status indication without additional hardware. Downloads Weblink Download nRF9151 SMA DK product brief (PDF)
