Wired-system connection unit for use with RAK-4 system components
$49.42
$92.42

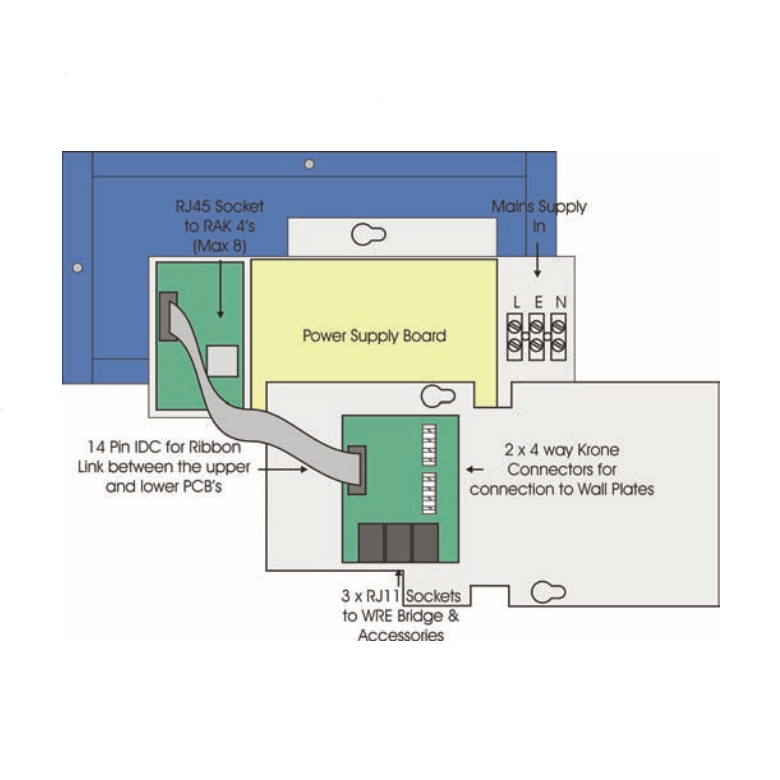

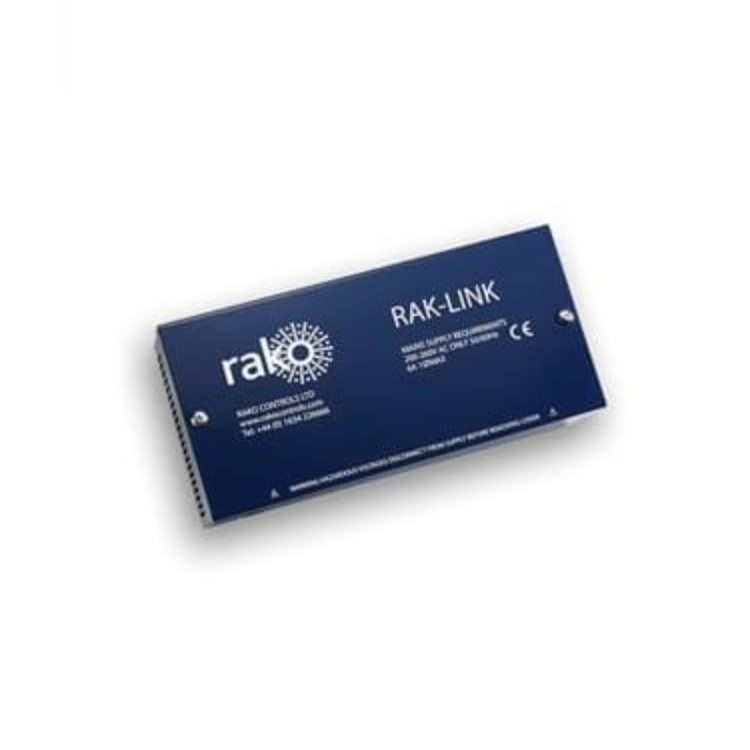

DescriptionRAK-LINK Wired-system connection unit for use with RAK-4 system componentsThe Rak-Link forms the connection between RAK8 dimmers and the wired Rakom CAT5 network.A wired connection unit for use with RAK8 range of dimmer units, with a power supply for wired CAT5 products. The power supply has the capability of powering 32 RAKOM devices, up to 1000m over standard CAT5e cable.Connection for the CAT5 is by 8 way punch down terminals. This allows for a daisy chain configuration of the RAKOM wired network. Where a ‘star’ or ‘home-run’ configurations are required the use of the RAK-STAR unit is needed.Can only be configured using RASOFT Pro programming software. More info:RAK-LINK data sheetRAK-LINK instruction manualRAK-LINK-1GPK instruction manual
