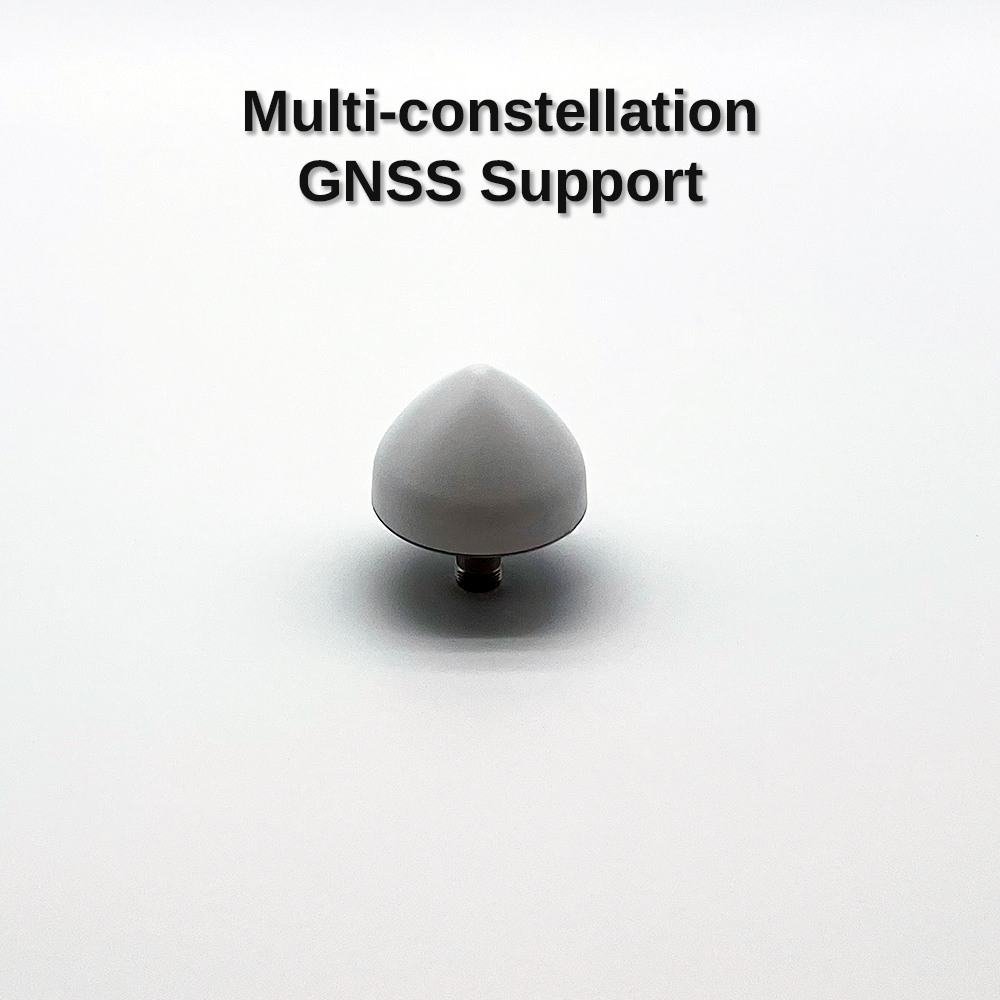

Description The 760-909-000 is a high-gain GNSS Outdoor Timing Antenna specifically designed for devices that support the full range of satellite navigation constellations, such as the TimeMachines TM3000. This includes USA GPS, Russian GLONASS, EU Galileo, and Chinese BeiDou. In addition, applications in environments where high levels of near out-of-band interfering signals can be expected, additional rejection filtering improves reception performance. This antenna features a 40dB LNA gain to handle long cable runs. Made by Calian, the TW3742 covers the GPS/QZSS-L1, GLONASS-G1, Galileo-E1, and BeiDou-B1GPS L1 frequency bands and employs Calian’s unique Accutenna™ technology to provide excellent cross polarization rejection and greatly enhanced multipath rejection. The TW3742 features a three (3) stage dual filtered LNA plus an additional SAW pre-filter to provide exceptional rejection of close out-of-band signals and additional protection against saturation by high level sub-harmonic and L-Band signals. The TW3742 housing has a permanent mount, IP67 compliant metal base, and an extended temperature range plastic radome, and is specifically designed to withstand the most challenging environmental conditions. Two options for pole mounting are available an L-bracket (SKU#760-907-000) or a pipe mount (SKU#760-908-000). Mount is not included with the antenna. – Dimensions: 2.6″ Base Diameter x 2.0″ Base to Top x 1.2″ Connector Extension – Connector: N, female (one – bottom fed). – Compatible with TimeMachines® TM1000, TM2000, TM2500, and TM3000 GPS time servers. – Outdoor Use Downloads: Outdoor Antenna Products Configuration Guide and 40dB Outdoor GPS Antenna Data Sheet TimeMachines® is your reliable source for Synchronized Network Clock Systems using our GPS Network Time Servers and NTP PoE and WiFi Clock Displays. We also offer a variety of GPS Accessories, Clock Display Accessories, T-Track Ceiling Mount Kit, and our network device management software TM-Manager. Our network clock displays can also be used as Sports & Fitness Clocks. TimeMachines® products are professionally designed and manufactured in the USA. TimeMachines® offers a variety of professional time synchronization products to meet all of your network timing needs! At TimeMachines®, our focus is on quality, service, integrity, and price, while meeting the needs of our diverse and rapidly growing customer base. Our products are ideal for libraries, gyms, schools, broadcast studios, manufacturing facilities, healthcare facilities, police and public safety offices, government and military agencies, and any corporate office. Take the time to find your timing solution today at TimeMachines®! Learn more about our extended warranty options for our gps time servers.
