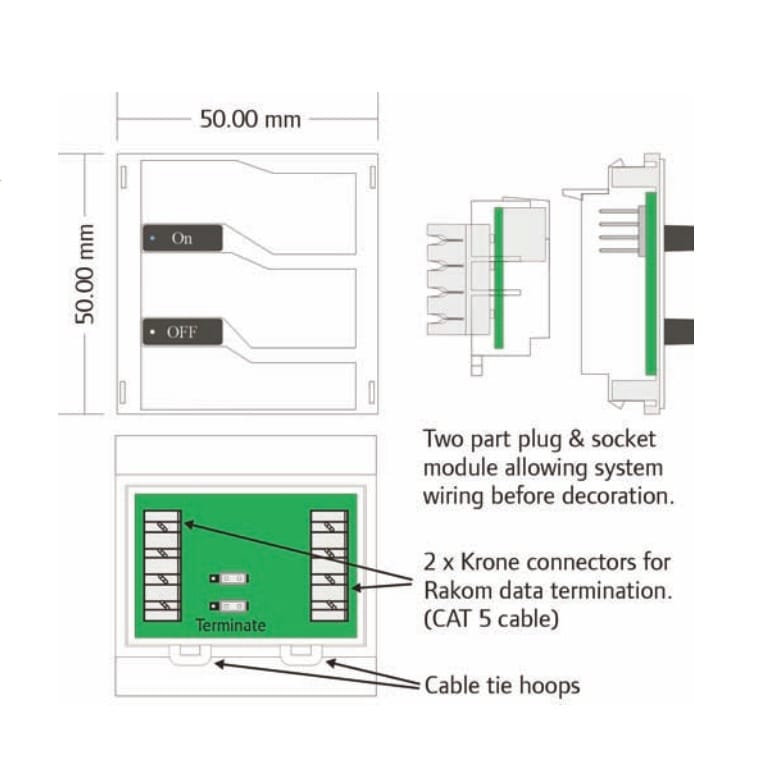

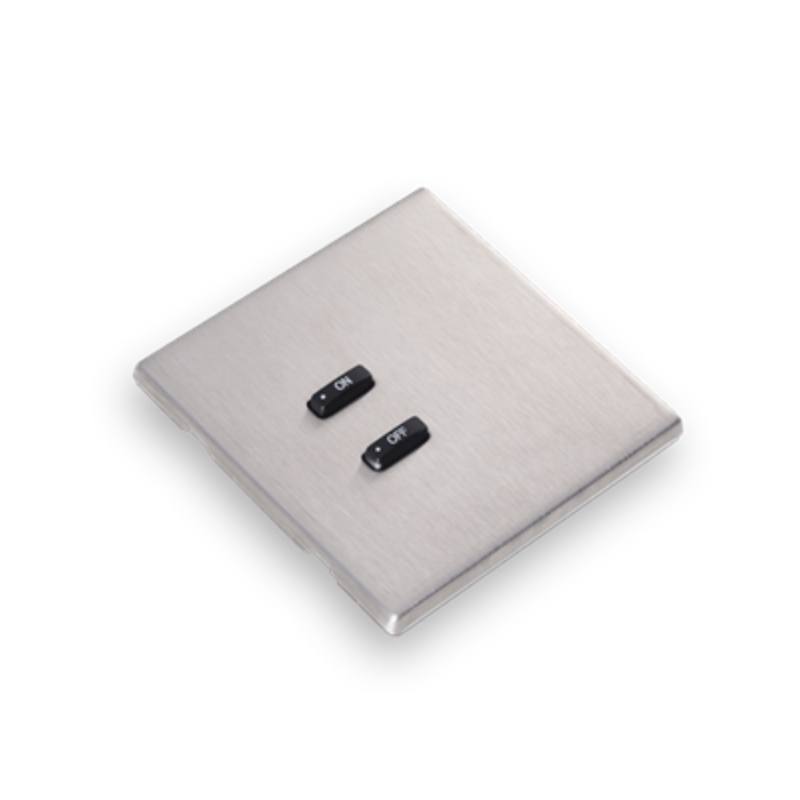

DescriptionWCM-020 The 2-Button Wired Modular Panel connects to the RAKOM wired CAT5 network pre configured for on & off.A hard wired 2 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Chocolate Bronze and Black NickelEach button is complete with a blue LED indicator and day-night etched buttons. Easy connection to the RACOM wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module.This protects the control module from being damaged while building works are being finished. The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement. Using RASOFT Pro programming software it is possible to configure each button individually to carry out a number of different tasks, for example: Scene selection, Scene toggle on/off, Channel toggle on/off, Master raise & lower, Channel raise & lower, Macro start/stop Local room or global off LED indicators are individually programmable to follow the logic of the above functions.Custom button laser engraving is also available. (For more information about custom button engraving please email
[email protected]) WCM-020:The WCM-020 wired keypad is a two button keypad for use with the wired system. It will transmit Scene 1 and Off before any custom programming is addedMore info:WCM-020 Instruction Manual WCM-040:The WCM-040 wired keypad is four button keypad for use with the wired system. It will transmit Scene 1, Off, Fade Up/Fade Down before any custom programming is added.More info:WCM-040 Instruction Manual WCM-041:The WCM-041 wired keypad is a four button keypad for use with the wired system. It will transmit Scene 1 and Off in two rooms before any custom programming is added.More info:WCM-041 Instruction Manual WCM-020/040/041 modules do not include the front plate shown in the image above.
