$50.95
$64.2

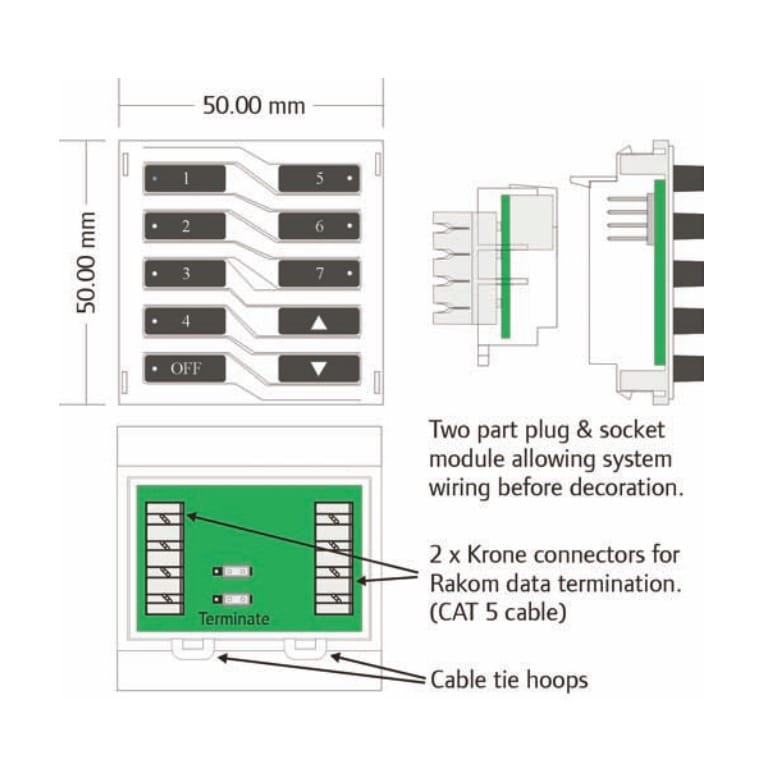

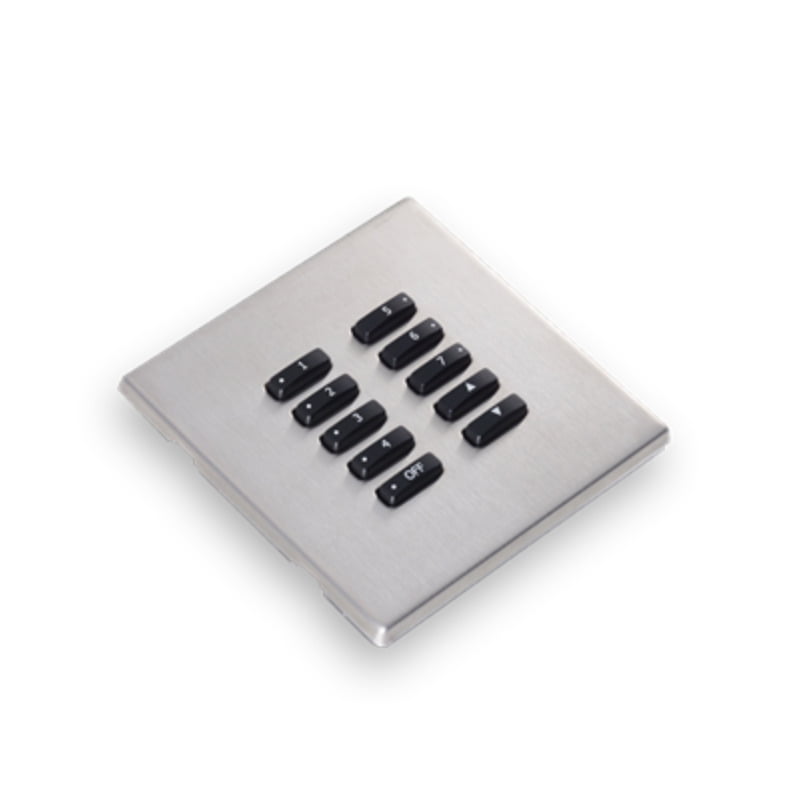

DescriptionWCM-100 The 10-Button Wired Modular Panel connects to the RAKOM wired CAT5 network pre configured for 7 scenes, off, raise & lower.A hard wired 10 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed Stainless Steel, Mirrored Stainless Steel, Chocolate Bronze and Black NickelUltimate ControlThe WCM-100 push button control module comes pre-configured for selecting 7 scenes, off and master raise & lower. Each button is complete with a blue LED indicator and day-night etched buttons. Easy connection to the RACOM wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module.This protects the control module from being damaged while building works are being finished. The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement. Using RASOFT Pro programming software it is possible to configure each button individually to carry out a number of different tasks, for example: Scene selection, Scene toggle on/off, Channel toggle on/off, Master raise & lower Channel raise & lower, Macro start/stop Local room or global off LED indicators are individually programmable to follow the logic of the above functions.Custom button laser engraving is also available. (For more information about custom button engraving please email
[email protected]) WCM-100:The WCM-100 wired keypad is a ten button keypad for use with the wired system. It will transmit Scene 1-7, Off, Fade Up/Fade Down in a single room before any custom programming is addedMore info: WCM-100 data sheetWCM-100 instruction manual WCM-101:The WCM-101 wired keypad is a ten button keypad for use with the wired system. It will transmit Scene 1-4, Off and Fade Up/Down in one room and Fade Up/Down and Off in another (typically for curtains/blinds) before any custom programming is added.More info: WCM-101 Instruction Manual WCM-102:The WCM-102 wired keypad is seven button keypad for use with the wired system. It will transmit Scene 1-4 and Off in one room, Scene 1 and Off in another and Scene 1 and Off in a third before any custom programming is added.More info:WCM-102 Instruction Manual WCM-103:The WCM-103 wired keypad is a ten button keypad for use with the wired system. It will transmit Scene 1-4 and Off in one room and Scene 1-4 and Off in another before any custom programming is added.More info: WCM-103 Instruction Manual WCM-100/101/102/103 module does not include the front plate shown in the image above.
