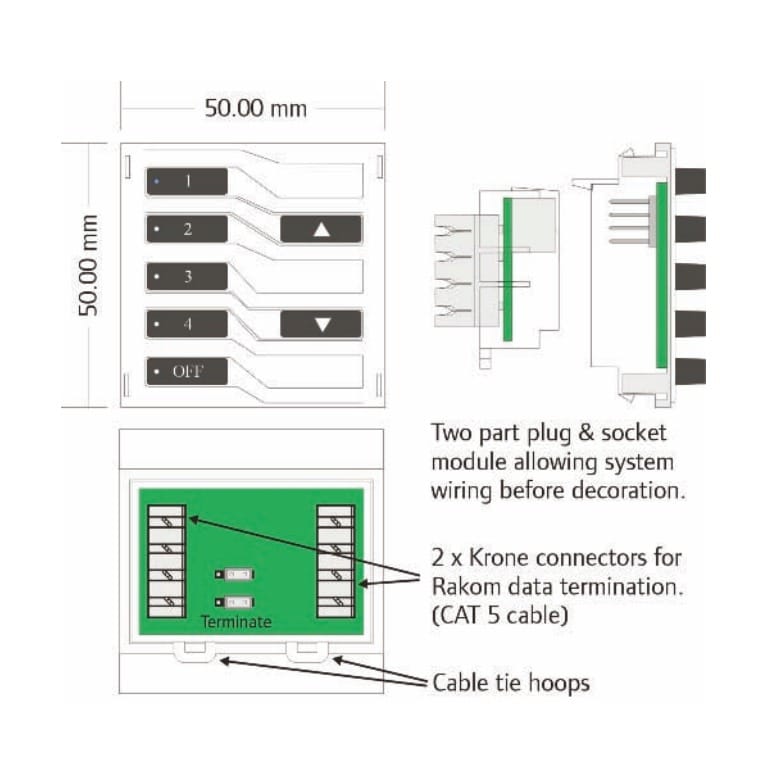

DescriptionWCM-070 The 7-Button Wired Modular Panel connects to the RAKOM wired CAT5 network pre configured for 4 scenes, off, raise & lower.A hard wired 7 button push button control module that has several fixing options. Based upon the widely used 50x50mm Euro Module switch plate accessory standard. Rako flat plate and screwless switch plate kits are available in a selection of finishes including: White, Brushed, Stainless Steel, Mirrored Stainless Steel, Chocolate Bronze and Black NickelEach button is complete with a blue LED indicator and day-night etched buttons. Easy connection to the RAKOM wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module.This protects the control module from being damaged while building works are being finished. The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement. Using RASOFT Pro programming software it is possible to configure each button individually to carry out a number of different tasks, for example: Scene selection, Scene toggle on/off, Channel toggle on/off, Master raise & lower, Channel raise & lower Macro start/stop Local room or global off LED indicators are individually programmable to follow the logic of the above functions.Custom button laser engraving is also available. (For more information about custom button engraving please email

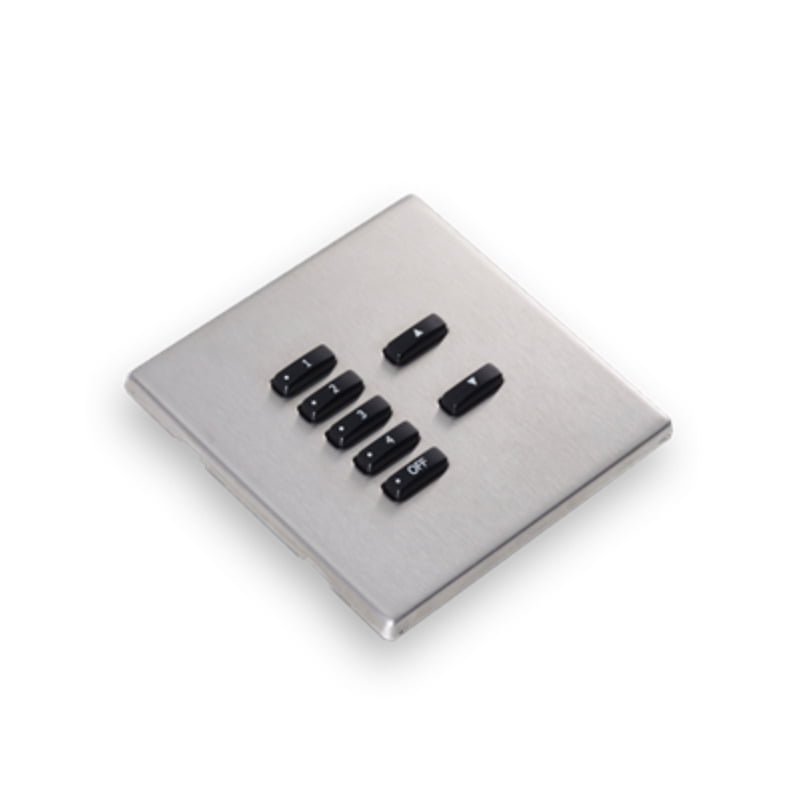

[email protected])WCM-070: Using RASOFT programming software it is possible to configure each button individually to carry out a number of different tasks, for example:Scene selectionScene toggle on/off Channel toggle on/offMaster raise & lowerChannel raise & lowerMacro start/stopLocal room or global offMore info:WCM-070 data sheetWCM-070 instruction manual WCM-071: The WCM-071 wired keypad is seven button keypad for use with the wired system. It is designed to operate up to 8 separate curtains/blinds in a single room before any custom programming is added.More info: WCM-071 instruction manual WCM-072:The WCM-072 wired keypad is a seven button keypad for use with the wired system. It will transmit Scene 1-4 and Off in one room and Scene 1 and Off in another before any custom programming is added.More info: WCM-072 instruction manual WCM-070/071/072 module does not include the front plate shown in the image above.
