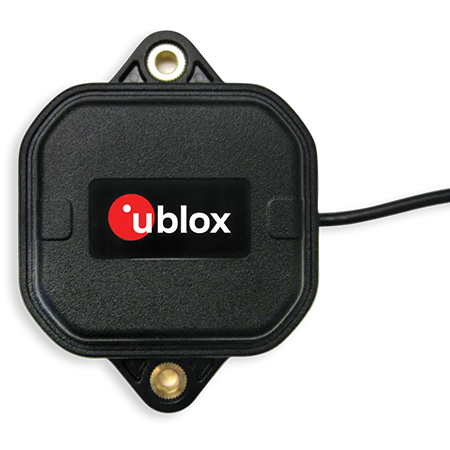

Description Easy-to-use, reliable multi-band antenna as part of u-blox high precision solution Highlights L1 /L5 multi-band active GNSS antenna for mass-market applications Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability Enables fast time-to-market Versatile mounting options to meet diverse installation needs Product Description The u-blox ANN-MB1 multi-band (L1/L5/E5a/B2a/NavIC) active GNSS antenna is designed to reduce time-to -market for the new generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-to-performance ratio, and versatile mounting choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB1 antenna is a perfect match to the u-blox F9 platform (including NEO-F9P-15B, ZED-F9P-15B, and ZED-F9T-10B), supporting L1 and L5 bands, thus providing customers with the valuable antenna solution they need to minimize evaluation and design-in efforts. Further Information: Antenna with 5 m coaxial cable, RG174 standard: Weight 164 g (including cable) Size 60.0 x 82.0 x 22.5 mm SMA Connector Mounting Magnetic base, fixed installation option Frequency L1 band: 1559 – 1606 MHz L5/E5a/B2a/NavIC band: 1164 – 1188 MHz VSWR Max. 2 Impedance 50 Ohm Peak gain (over 12 cm diameter ground plane) L1 band: 3.8 dBic L5/E5a/B2a/NavIC band: 1.3 dBic Polarization RHCP Product Summary Data Sheet Web Link
