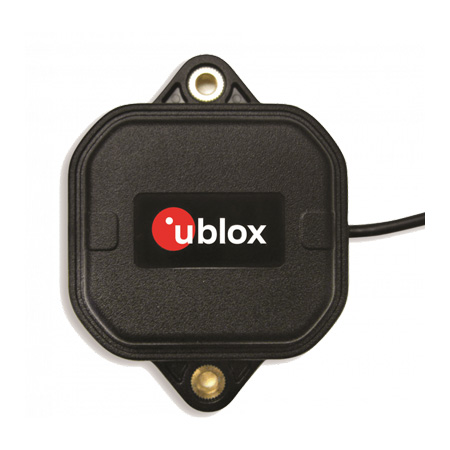

U-BLOX MULTI-BAND, HIGH PRECISION GNSS ANTENNA, 5M, RG-174, SMA-M

Description ANN-MB series Multi-band, high precision GNSS antennas   Highlights Multi-band (L1, L2/E5b/B2I) active GNSS antennas with excellent price performance ratio Supports GPS, GLONASS, Galileo, and BeiDou Fast and easy antenna solution for high precision applications Versatile mounting and connector options   Product Description The u‑blox ANN-MB multi-band (L1, L2/E5b/B2I) active GNSS antennas are designed to reduce time to market for the next generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price performance ratio, and versatile mounting and connector choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB antenna is a perfect match to the latest u‑blox F9 platform including the ZED-F9P module, thus providing customers with the valuable antenna solution they need to minimize design-in efforts.   Further Information: Antenna with 5 m coaxial cable, RG174 standard: Weight 173 g (including cable) Size 60.0 x 82.0 x 22.5 mm Connectors (choice) SMA, SMB, MCX Mounting Magnetic base, fixed installation option Frequency: L1 Band: 1559 – 1606 MHz, L2/E5b/B2I Band: 1197 – 1249 MHz VSWR Max. 2 Impedance 50 Ohm Peak gain (over 15 cm diameter ground plane): L1 Band: 3.5 dBic, L2/E5b/B2I Band: 0 – 2.0 dBic Polarization RHCP   ANN-MB Product Summary ANN-MB Data Sheet Web Link
