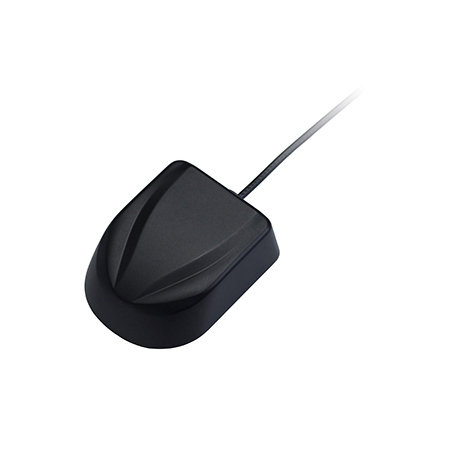

Description AA.105.301111 The Taoglas AA-105 Titan is a High Performance GPS active antenna suitable for u-blox GPS modules. Frequency : 1575 ±2 MHz Amplifier Gain : 30dB standard (optional 10-30dB) Noise Figure : 1.5dB max Power Supply : 1.8-12.0 VDC at 10mA (30dB gain) Base : Magnetic mount (adhesive optional) IP67 Waterproof housing size : 44 x 33 x 14mm RF Cable/Connector : 3m RG-174/U with SMA(M) Data Sheet Web Link
