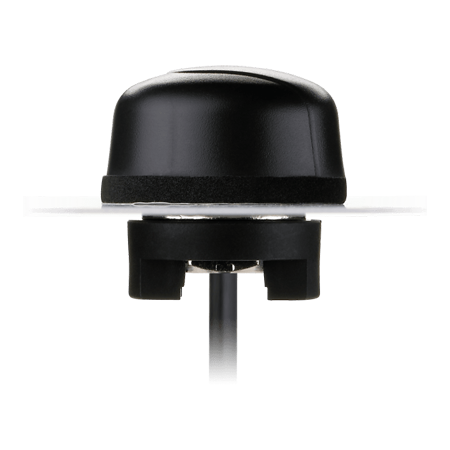

Description Hercules G21 3G/2G Cellular Permanent Mount Antenna, 3M RG-174 The G21 (Generation II) Hercules is a high performance, steel thread-mount, Penta-band cellular antenna for external use on vehicles and outdoor assets worldwide. Omnidirectional high gain across all bands ensures constant reception and transmission. The durable UV resistant PC housing is resistant to vandalism and direct attack. With IP67 and IP69K waterproof rating, the G21 can be screw mounted on vehicles and outdoor/indoor assets via its extra thick thread. The antenna has a compact dimension at only 28.5mm in height and 49mm in diameter. The enclosure is designed to not catch on tree-branches. GSM/GPRS/CDMA/EVDO/UMTS/HSPA/WCDMA 850/900/1800/1900/2100MHz Low profile – Height 29mm, diameter 49mm Heavy duty screw mount UV and Vandal resistant PC housing IP67 & IP69K 3M Cable RG174 Standard SMA(M) Connector Standard Cable and Connector are Customizable ROHS Compliant Datasheet Web Link
