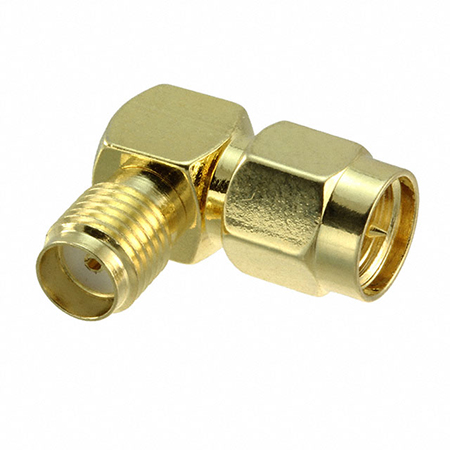

14-102G: SMA Male to SMA Female, Right Angle Adapter
14-102G: SMA Male to SMA Female, Right Angle Adapter
$42.75
$68.83
Description 14-102G SMA Male to SMA Female, Right Angle Adapter. Features: Frequency Range: DC-3GHz Voltage Standing Wave Ratio: ≤1.15 Impedance: 50Ω Temperature Range: -55~ 155oC Centre Conductor Retention Range: ≥0.28N Coupling nut Retention Force: ≥180Nq Insertion Loss: ≤0.1dB/3GHz Durability (mating): >500 Cycles Insulation Resistance: ≥5000MΩ Working Voltage: 355Vrms Max Voltage (can withstand): 1000Vrms Material Information: Body: Gold plated Brass Pin/Socket contact: Gold plated brass/ beryllium-copper Crimp ferrule: Nickel/gold plated Copper alloy Insulator: PTFE
Rf Adapters
Rf Adapters
14-102G: SMA Male to SMA Female, Right Angle Adapter
$42.75
$68.83
14-102P RP SMA Male to N-type Female
$42.75
$81.65
14-235C: SMA Male to SMA Female
$40.31
$67.32
14-100A: FME Male to FME Male Adapter
$50.49
$68.67
14-105B: N-type Male to SMA Female, straight
$64.35
$115.19
14-102H: RPSMA MALE TO SMA FEMALE
$42.75
$72.68
C0A003F0140-01: U.FL – SMA Adaptor Connector
$42.75
$74.39
14-102E: SMA Male to SMA Male, straight
$50.49
$62.1
14-102D: N-type Female to SMA-Male, straight
$37.92
$75.46
